Kubernetes Component Diagram

Following are the components of Kubernetes Master Machine. Heres the diagram of a Kubernetes cluster with all the components tied together.

Kubernetes Architecture Components Why Need Kubernetes By Md Shafiqul Islam Medium

In computing this process is often referred to as orchestration.

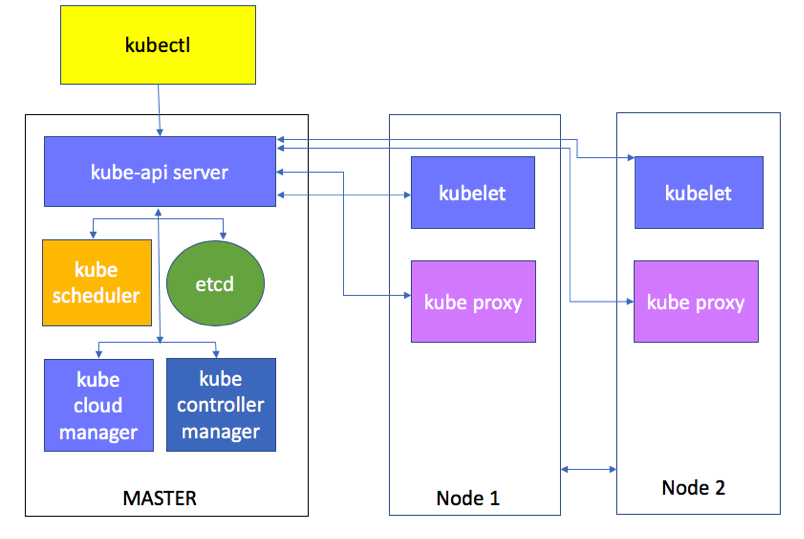

Kubernetes component diagram. Heres the diagram of a Kubernetes cluster with all the components tied together. Lines show the traffic flow between components. Colors are used purely for visual aid.

It is the entry point for all kind of administrative tasks. When you interact with Kubernetes by using CLI you are communicating with the Kubernetes clusters master node. The pod eth0 is part of the podns.

Kubernetes is made up of the following components. Performs all the administrative tasks. Wherein we have master installed on one machine and the node on separate Linux machines.

Kubernetes Architecture Diagram Master Node. Much as a conductor would Kubernetes coordinates lots of microservices that together form a useful application. It explains the architecture and features like api-server scheduler etcd and control manager.

A working Kubernetes deployment is called a cluster. Lets have a look into each of the components responsibilities. You can visualize a Kubernetes cluster as two parts.

Professionally designed visually stunning - Understanding The Kubernetes Components Through Diagram Timeline Ppt Model Deck PDF. A K8s setup consists of several parts some of them optional some mandatory for the whole system to function. Kubernetes follows client server architecture architecture is composed of a master node aka Control Plane and a set of worker nodes.

As you can see in the diagram it consists of 4 components. This document outlines the various components you need to have a complete and working Kubernetes cluster. The analogy with a music orchestra is in many ways fitting.

Kubernetes Master Components The Kubernetes master runs the Scheduler Controller Manager API Server and etcd components and is responsible for managing the Kubernetes cluster. The key components of master and node are defined in the following section. Master have few more components such as ETCD cluster Kube API Server Kube Controller Manager and Kube Scheduler which will combine together to control the Kubernetes cluster.

The veth the bridge docker0 routing tables and the host port are part of rootns as shown in the diagram below. When a deployments replicas field is. Under worker nodes we cover details about kubectl kubelet and kube-proxy.

These components are connected via a network as shown in the following diagram. As seen in the following diagram Kubernetes follows client-server architecture. The key components of master and node are defined in the following section.

Kubernetes - Master Machine Components. This tutorial walks you through the Kubernetes architecture and the control plane and worker node components. The master node is responsible for the management of Kubernetes cluster.

Wherein we have master installed on one machine and the node on separate Linux machines. It connect to the Kubernetes master via HTTP or HTTPS to get a command and report the status. According to the diagram the Main Control Center of the port will be considered as our Master node.

Kubernetes - Master Machine Components. Kubernetes is a tool used to manage clusters of containerized applications. There are two parts to the namespace in Kubernetes networking pod namespace podns and host or root namespace rootns.

Kubernetes Master Node Master Node is a collection of components like Storage Controller Scheduler API-server that makes up the control plan of the Kubernetes. Control Plane Components The control planes components make global decisions about the cluster for example scheduling as well as detecting and responding to cluster events for example starting up a new pod A Pod represents a set of running containers in your cluster. What are the components of a Kubernetes cluster.

The master node is the first and most vital component which is responsible for the management of Kubernetes cluster. Kubernetes Architecture works from a physical standpoint on slave based model which has one master node and several worker nodes. It connects to etcd via HTTP or HTTPS to store the data.

The Master Node refers to the control node in the kubernetes cluster. It L2 L3 or. As seen in the following diagram Kubernetes follows client-server architecture.

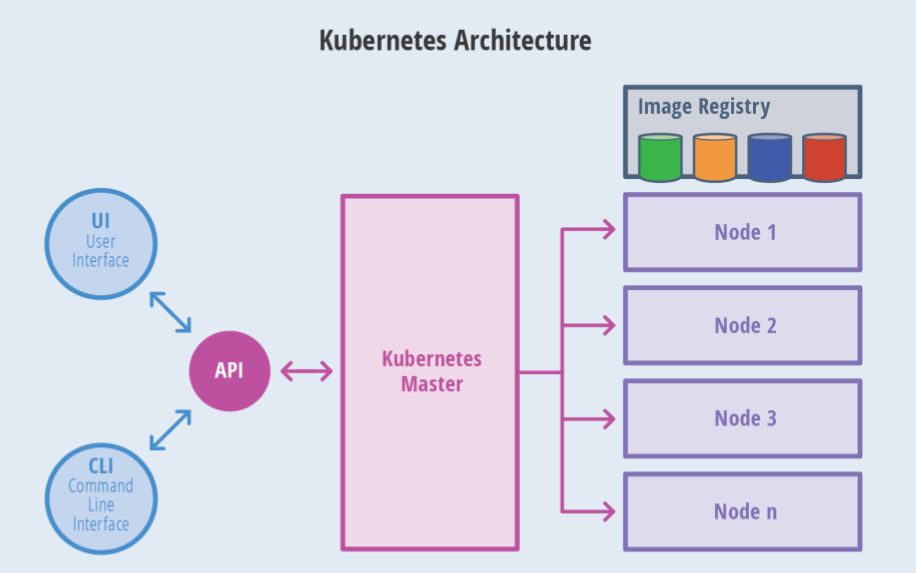

Following are the components of Kubernetes Master Machine. This is a high-level diagram of the architecture. In each cluster there should be one master responsible for management and control of the entire cluster.

Troubleshooting Worker Nodes and Generic Components. Below is a detailed Kubernetes architecture diagram.

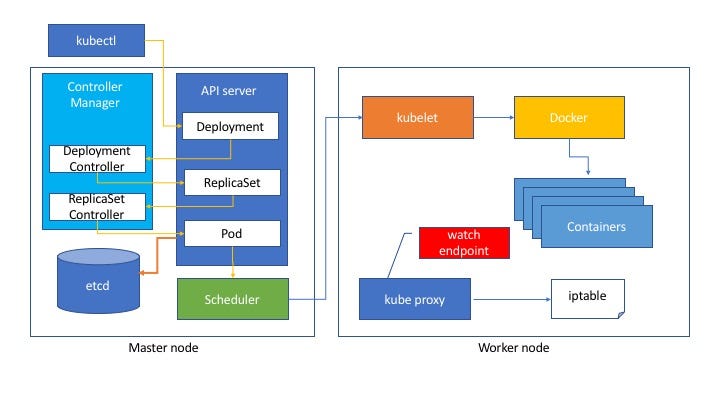

Kubernetes In Three Diagrams I Helped An Open Hack Event For By Tsuyoshi Ushio Medium
